Electric Full Cassette Retractable Awning Outdoor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frame | Outdoor Power Coated | Style | Retractable |
|---|---|---|---|
| Material | Waterproof Fabric | Operation | Motorized |
| Mmodel Number | DM820 | Function | Sun Protection |
| Highlight | Outdoor Cassette Retractable Awning,Electric Cassette Retractable Awning,Full Cassette Retractable Awning |
||
You can tick the products you need and communicate with us in the message board.
| Model Number | DM820 | |
|---|---|---|
| Sail Finishing | PU Coated | |
| Operation Method | Remote Control Switch | |
| Feature | Anti-UV | |
| Name | Full Cassette Awning | |
| Frame | Aluminum material | |
| Surface | Outdoor power coated | |
| Fabric | Polyester or Acrylic | |
| Avaliable arms | 1.5M,2.0M,2.5M,3M | |
| Usage | Outdoor Sunshade |
Product Description
Electric Full Cassette Retractable Awning Outdoor Cassette Retractable Awning
Full Cassette Awning Feature:
| *New Generation of Full cassette Aluminum Retractable Awning with exquisit and high quality aluminum alloy; |
| * Durable & high strength triple cable arms with thicker and wider aluminum profile make the force of the arm great enhanced; |
| *Safe, enviromental protection,enery conservation materials for the profile; |
| *LED strips Arms with adjustable brightness; |
| *One click remote controlled for freely retact; |
| *Equipped with patented Balance System for perfectly folding the awning into the cassette; |
| *Max size per Unit: 6m(width)* 3m(Projection) |

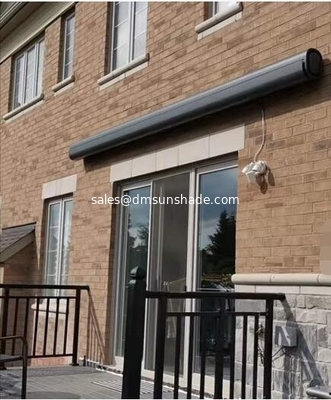

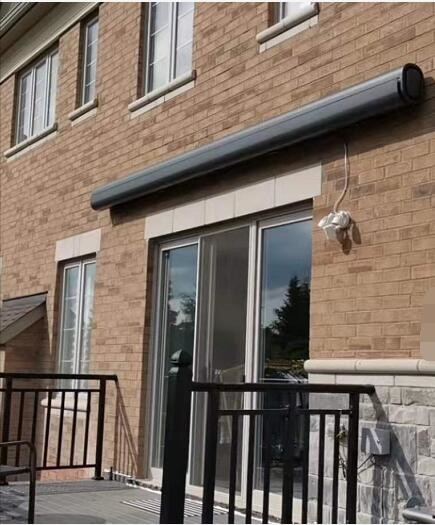

| *When close,the whole awning is retracted into the cassette to avoid the fabric to get dirty; |
| *Stainless steel screw bolts,high temperature powder coated finish. |
Speclficatlon:
Aluminium Full Cassette Retractable Awning
Roller:70mm/78mm Steel
Front Bar:Alu.125x60mm
Arm:50x27/60x27mm
Gear Box:1:11
Adjusted-angle:5°to 75°
Frame:Outdoor Powder Coated
Connector:Alu-Die-Cast
Fabric:Polyester or Acrylic
Packing:Each pc/Carton
Max size:Width 6M,Projection 3M
Arms Available:1.5M,2.0M,2.5M,3M

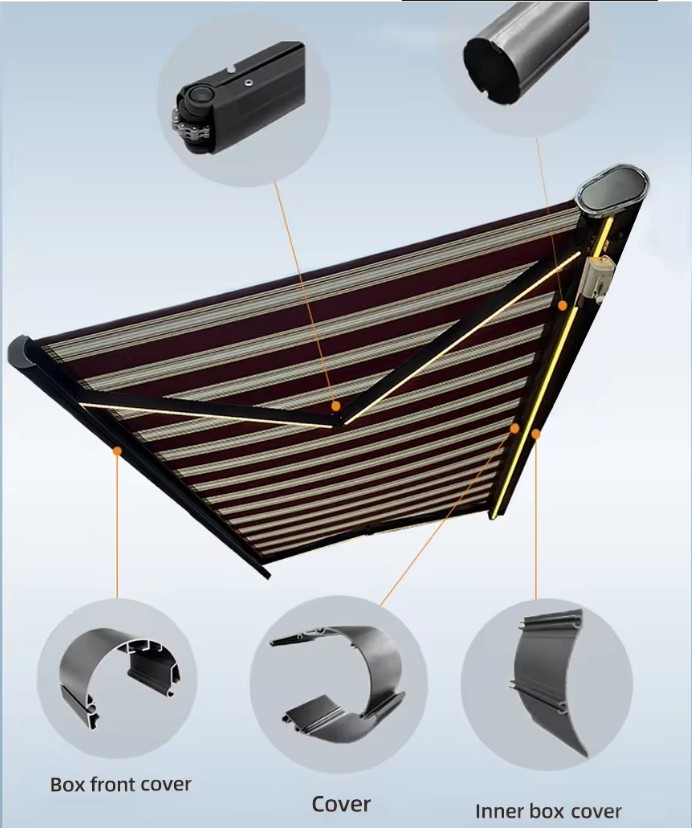

Retractable awning arms assembly
There's different size for awning arms from 1.5 to 3 for normal arms, and 3.5m,4.0m for stronger arms.
Awning Arm shoulder with very strong of connector parts
Innovatively designed, awning arm shoulder consists of three components of high strength extruded aluminum that work in conjunction to provide lateral and vertical stability, and are virtually unbreakable. a factory default setting of 25 degrees, and an optional 5 to 75 degree setting after a simple adjustment.
Also have general retractable awning arm with chain arm
Size: 1.5M,2.0M,2.5M
Extreme awning arm employs extruded aluminum profiles, strong die-cast and thermally treated aluminum elbows with PVC protected double cables. The heavy-duty springs inside the arms apply tremendous force to hold the fabric tight when the awning is extended.
Fabric options:
