Automatic Aluminum Waterproof Semi- Cassette Balcony Retractable Outdoor Awning
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frame | 6063T5 Aluminum With Outdoor Powder Coated | Roller | Dia.70mm, 80mm Alu Or Steel |
|---|---|---|---|
| Front Bar | Alu. 95*68nn | Square Bar | Steel 40*40mm |
| Arm | 55*27mm/60*30mm | Extra Strong Arm | 65*35nn/80*37mm |
| Gear Box | 1:11 | Adjusted-Angle | 5~75 Degree |
| Fabric | Polyester /Acrylic | Packing | Each Pc/Carton |
| Max Size | Width 6m,Projection 4m | Arms Available | 1.5m/2.0m/2.5m/3.0m/3.5m/4.0m |
Product Description

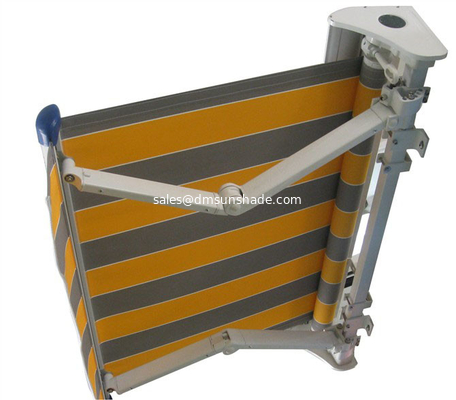

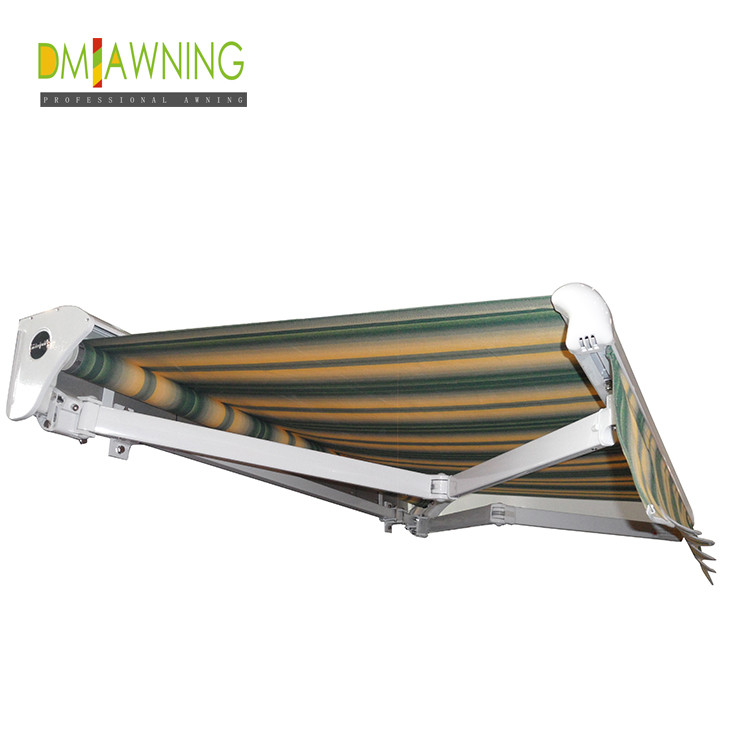

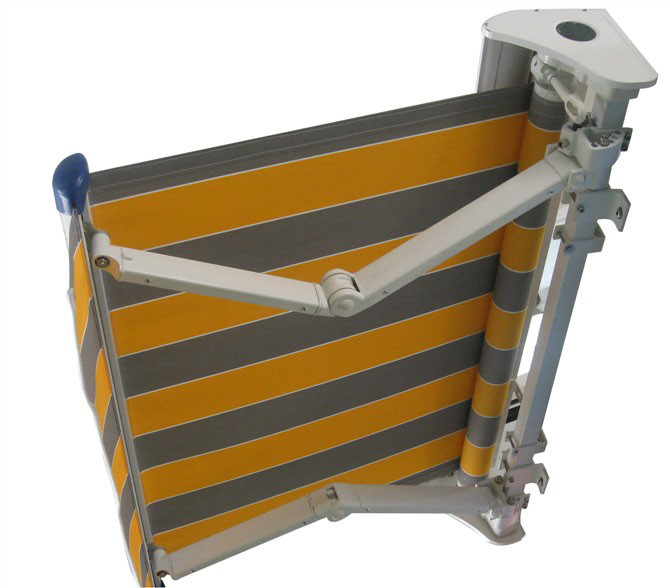

Automatic Aluminum Waterproof Semi- Cassette Balcony Retractable Awning
Advantages:
*can prevent damage to your furniture,and flooring, it can also help with reducing energy consumption by lowering temperatures up to around 30% inside your home.
*Easy to assemble and clean
*Protect your skin from harmful UV rays by 95%
*Multi-sets joint available
Other Parameters:
| Type: | GR580B2 Aluminum DM retractable awning |
| Roller: | Dia 70mm, 80mm Alu. or steel |
| Front BAR: | Alu.95*68mm |
| Square bar: | steel 40*40mm |
| Arm: | 55*27mm/60*30mm |
| Enhanced folding arm: | 65*35mm/80*37mm |
| Gear Box: | 1:11 |
| Adjusted-angle: | 5 to 75 degree |
| Frame: | 6063T5 Alu with outdoor powder coated |
| Fabric: | Polyester or Acrylic or Para(details as below) |
| Maxmum size/set: | Width 6M, Projection:4M |
| folding arm size available: | 1.5m,2m,2.5m,3m,3.5m,4m |
| Driver: | tubular motor |
| Packing: | each pcs/carton seaworthy package |
| .Control: | Manual operation by hand crank or remote control |
Detailed Fabric Information:
280g/m 2 ,level 4 for polyester,PU coated,waterproof,anti-UV
300g/m 2 ,level 5~6 for domestical acrylic,PU coated,waterproof,anti-UV
300g/m 2 ,level 7~8 for solution dyed acrylic,teflon coated,waterproof,anti-UV

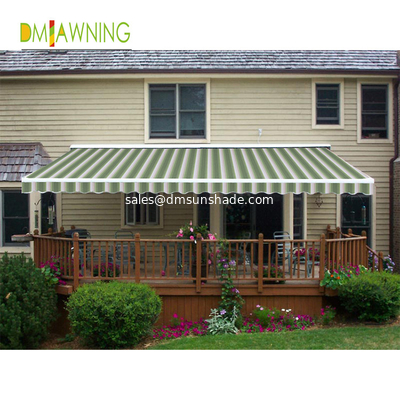

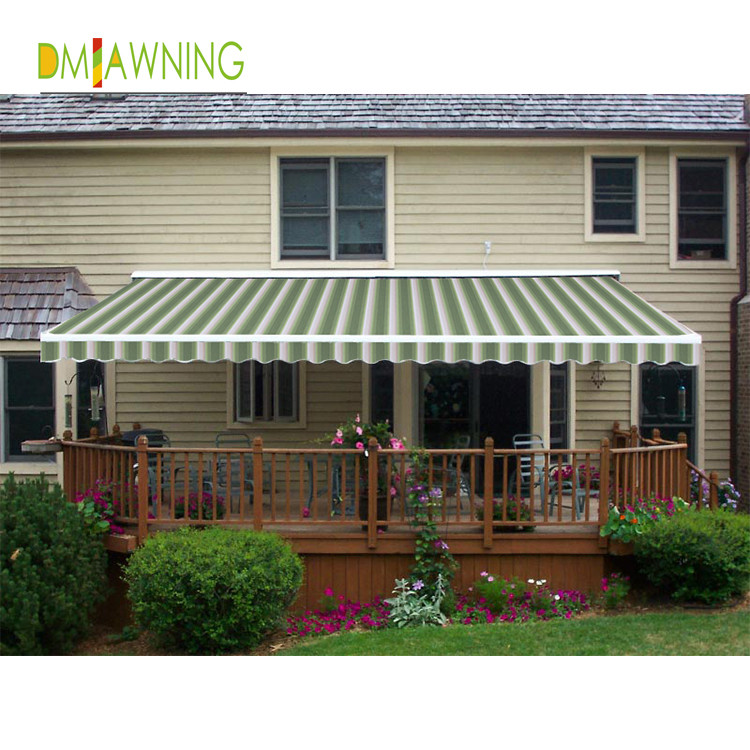

Half Cassette Awning (with flashing covers)
Strong Front Bar with built-in rain channel Awning
A part of patterns for selection,for more colors, pls contact us
Advisable Maintenance
Awning fabric should be cleaned regularly.
Remove surface marks with a brush.
Never use any other chemical product to clean the awning.
Close the awning in extreme weather of heavy wind or rain.The function of awning is used to protect people from sunshine.
Not to roll up the awning when it is wet, but only if necessary, open it to make it dry.
To avoid the water puddles in the middle of awning, always keeping the fabric in tension and with an adequate slope or pitch angle.
It is recommended to mount the awning on the solid concrete wall or bricks for better support
